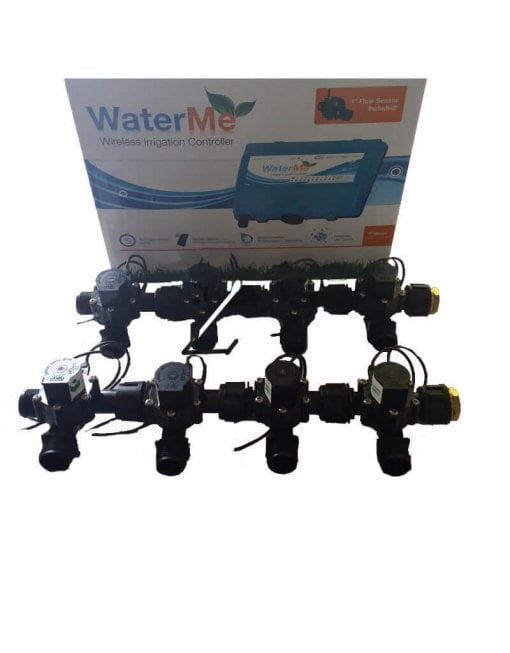

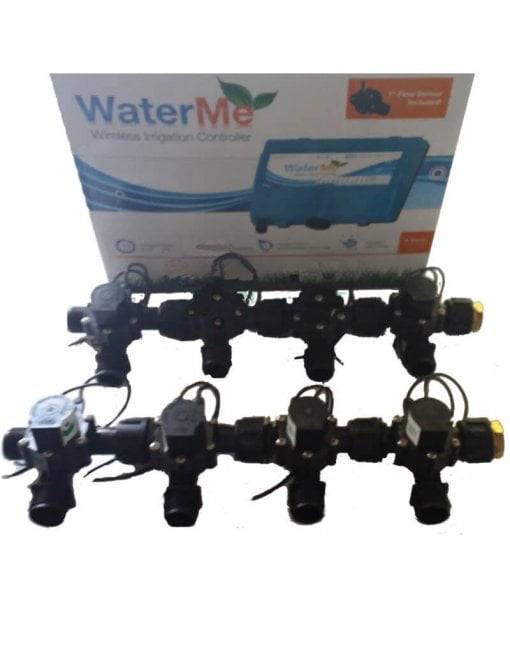

WaterMe Irrigation Controller + Qty 8 x 3/4″ Irrigation Manifold Assembly x 3/4″ BSP Male (2-way)- 50LPM

Package Includes:

WaterMe Irrigation Controller( 1″ Flow Sensor Included)

WaterMark Approved Qty 8 x 3/4″ Solenoid Valve – 50 LPM – 24VAC

Inlet – 3/4″ BSP Male Thread

Outlet 1- 3/4″ BSP Female Manifold

Outlet 2 – 3/4″ BSP Male Thread

Free Qty. 1 x 3/4″ Brass Endcaps

Wireless Controller Features:

– Remote access via mobile app or computer (internet connection required)

– 10 independent schedules

– Permanent program memory

– Photo Capture to identify Zones

– Push notification sent to smart phone in case of leak or flow rate out of specification

– Programmable master valve delay time

– Programmable mist cycle

– Included flow sensor 1″ BSP (measuring range 2-100 LPM)

– Local weather synchronization automatically alters watering schedules

Input Capabilities

– 1 x Master Valve

– 10 x Solenoid Valves

– 3 x Flow Sensor (1 Included)

– Rain Sensor

– Moisture Sensor

-Apple and Android mobile platform capable

Electrical Specification

– Transformer input 24VAC, 50 Hz

– Transformer output 24VDC 1.5 Ams

– Maximum valve current 24VAC at 1.0 AMP

Functional

– 24VAC/DC valves (Max current draw 1000mA/Valve)

– Controller provides full current on valve start up then reverts to low current on run, saving up to 70% power

– DC latching valve compatible 6-12v DC

– Weather resistant material

– Apple and Android operating platform capable

– Simple setup, operation and programming experience

– Australian Designed and Engineered

1″ Flow Sensor:

– 1″ BSP Male Thread Inlet + 1″ BSP Male Thread Outlet

– Flow Range: 2 – 100 LPM

– Repeatability <= 1%

– Accuracy <=2.5% of FULL SCALE

– Max. fluid temperature: 60 DEG C

– Max. Ambient Temp. Range: 0 DEG C – +60 DEG C

– Max. Fluid Pressure: 1.5 Mpa

– Operating Voltage: +5V – + 24V

– Output Frequency: Square Wave

Material:

– Body: 30% Glass Filled Nylon

– Support Spindle: 316 Stainless Steel

– Paddle Wheel: Acetal (POM)

– Oring: Nitrile

– Screws: 304 Stainless Steel

3/4″ Irrigation Solenoid (2-Way):

– Inlet – 3/4″ BSP Male Thread

– Outlet 1 – 3/4″ BSP Female Manifold

– Outlet 2 – 3/4″ BSP Male Thread

– Solenoids joins together to form a neat assembly

Material:

– Body – 30% Glass Filled Nylon – UV Stabilised

– Internal Diaphragm – Nitrile

– Internal Disk – Acetal

Total Item package:

– 1 x Wirless Irrigation Controller( Flow Sensor Included)

– 8 x 3/4″ Irrigation Solenoid – 50LPM ( 2-way)

– 1 x 3/4″ BSP Male Brass Endcaps
