Orbit B-hyve WiFi Controller 6 Station -6 x 19mm Barb Solenoid Combo-Rain Sensor

Orbit B-hyve WiFi Controller 6 Station -6 x 19mm Barb Solenoid Combo-Rain Sensor

Name: Orbit B-hyve WiFi Controller 6 Station -6 x 19mm Barb Solenoid Combo-Rain Sensor
SKU: Orbit6Station-6Z
Price: 365.00 AUD
Availability: InStock

$365.00 Inc. GST

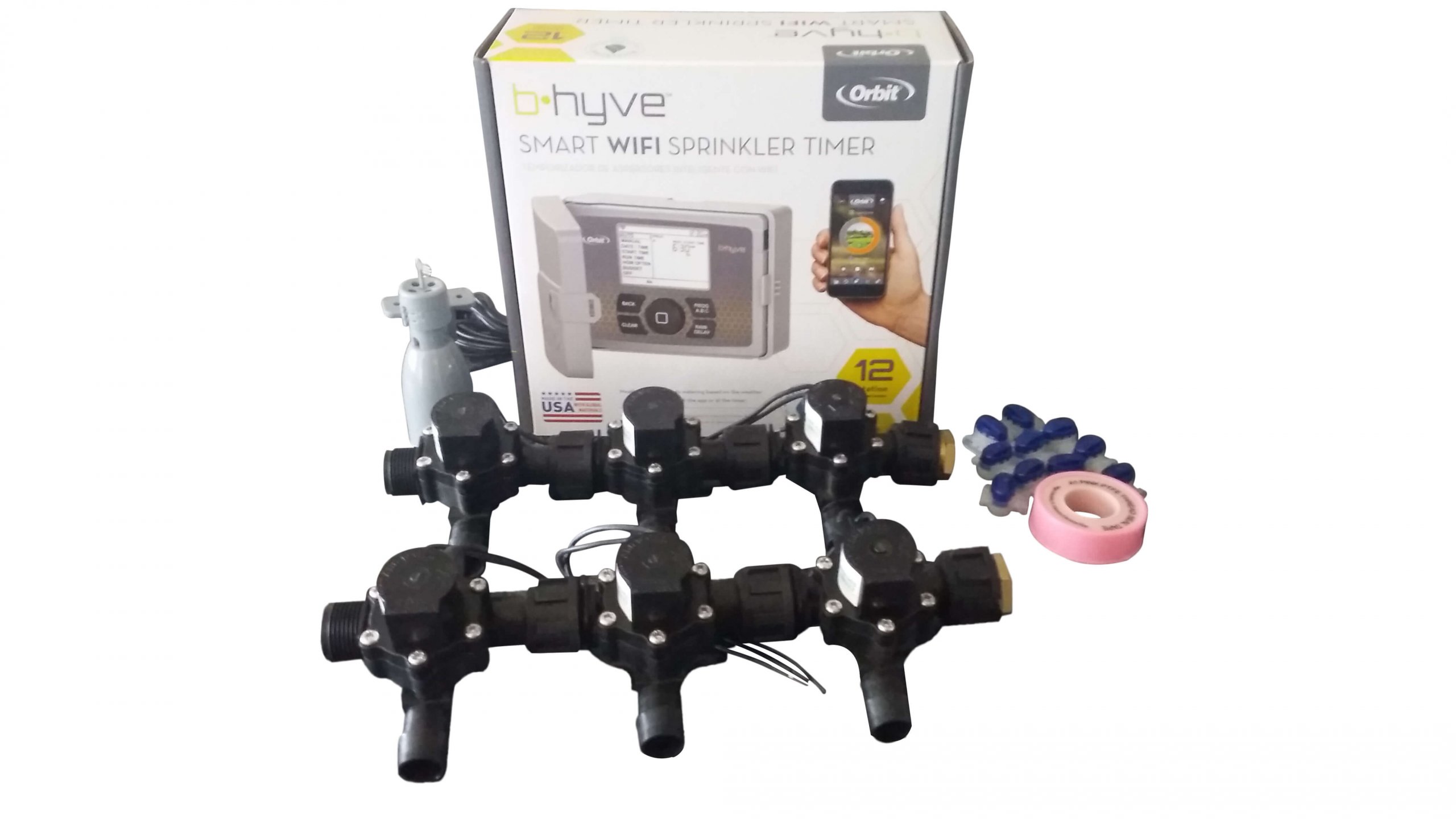

COMBO PACKAGE INCLUDES:

1 x Orbit B-Hyve WiFi Controller 6 Station

1 x Rain Sensor

6 x 19mm Solenoids 50LPM 24VAC – Australian Made

15 x 3M Scotchlok Gel Filled Connectors

2 x Brass EndCap

1 x 10m Pink Plumbing Tape

SKU: Orbit6Station-6Z Categories: 6 Zone WiFi Controller Combo, Orbit, WIFI Controller Combos

Orbit B-hyve WiFi Controller 6 Station -6 x 19mm Barb Solenoid Combo-Rain Sensor

COMBO PACKAGE INCLUDES:

1 x Orbit B-Hyve WiFi Controller 6 Station

1 x Rain Sensor

6 x 19mm Barb Solenoids 50LPM 24VAC – Australian Made

15 x 3M Scotchlok Gel Filled Connectors

2 x Brass EndCap

1 x 10m Pink Plumbing Tape

ORBIT B-HYVE LATEST MODEL WITH 4 PROGRAM(ABCD)

Orbit B-Hyve 6 Station WiFi Irrigation Controller – Ideal for Outdoor Use

The Orbit B-Hyve Wi-Fi sprinkler timer allows the user to water smarter and make watering decisions based on the needs of the home garden. Orbit B-Hyve controller combines easy programming and remote programming using the home Wi-Fi. Users can remotely access and programm their controller from their IOS (Apple) or Android mobile application at no charge.Programming can also be carried out at the controller allowing dual functionality.Orbit B-Hyve can be set to adjust watering based on local weather using your postcode making sure you minimise water waste due to rain and delivering the correct water volumes to your lawn and plants.

Features:

6 Stations/Zones
Large LCD Display
Weatherproof Case
Can connect Rain sensor & Pump Start Relay
Smart WeatherSenseTM Technology
4 programs
4 start times per program
1 – 240 minute run time per station
Selective days to water or Odd/Even and interval selection upto 32 days
Seasonal adjustment 10% – 200% per program
Rain delay 1 – 32 days
Will operate with or without Wi-Fi connectivity
Indoor / Outdoor lockable cabinet
Built in fault detection and surge protection
Swing panel for easy access to wiring terminal
Knock-outs for 13, 20 and 25mm conduit for station wires
Intergrated catch-cup application allows up to 50% water savings
Watering history reports
Program stored in non-volatile memory and is not lost if timer loses power
Up to 5 users allowed for remote access – ideal for maintenance and outside programming

SMART WATERING CAPABILITIES TO CONSERVE WATER

Controller smart watering setting, acts as rain delay based on forecast with standard controller station programming
Smart watering by station, allows user to set irrigation condition for each station plant type
Wi-Fi functional Android, IOS mobile platform > no charge
Programmable from mobile application or at the timer
WeatherSenseTM technology that provides smart watering based on site conditions such as slope, soil type, sun/shade, historical ET and live weather feeds
Smart watering restrictions based on odd/even or selective days

ELECTRICAL SPECIFICATIONS

Transformer input : 240vac > 50Hz
Transformer Output : 24vac @ 1.0A
Station output : Upto 0.80A each
Pump / Master Valve Outputs : 1 pump/master valve, 2 valves from 1 station
Sensor inputs : 1 dry contact open type (prevents watering)
IP ratings : IP33
Battery: CR2032 3 volt DC, holds time and date

RAIN SENSOR:

5m wire length
5 level adjustable rain setting ( inch & mm)
No battery Needed
Shuts down watering once rain is detected
Easy mounting

SOLENOID VALVE – MANIFOLD TYPE 24VAC – 50LPM

Inlet – 3/4″ BSP thread Male (AS 1722)
Outlet 1 – 3/4″ BSP thread-Manifold(Union Nut)- Female (AS 1722)
Outlet 2 – 19mm Barb Outlet

BONUS BRASS ENDCAP INCLUDED WITH ALL TYPE OF SOLENOID ARRANGEMENTS

PLEASE CONTACT US IF YOU NEED MASTER SOLENOID( 3/4″ Male Inlet x 3/4″ Male Outlet – 24VAC 50LPM). This Master solenoid can be included in beginning of valve assembly and is very useful. Also if you need to add more solenoids to this combo please let us know.

Technical Specification

Operating Pressure Range – 20Kpa to 1250Kpa
Power Consumption – 8VA
Frequency – 50Hz
Flow – 50LPM
Voltage – 24VAC
Valve Type – Normally Closed
Lead Length – 200mm
Temperature Range – 2°C – 60°C (Ambient), 2°C – 80°C (Media)

Material

Body – 30%Glass Filled Nylon
Coil Encapsulation – 30%Glass Filled Nylon
Diaphragm – Natural Nitrile Elastomer
Disk Diaphragm – Acetal
Filter – Acetal
Application Area – Liquid, Gas & Light Oil

Made in Australia
WaterMark Approved and Compliant with ATS 5200.030

Weight	3.5 kg
