Orbit B-hyve WiFi Controller 6 Station-2 x 19mm Barb Solenoids Combo-Rain Sensor,Wire
$299.00 Inc. GST

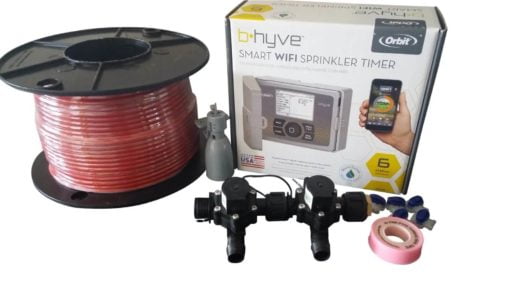

COMBO PACKAGE INCLUDES:
1 x Orbit B-Hyve WiFi Controller 6 Station
1 x Rain Sensor
2 x 19mm Barb Solenoids 50LPM 24VAC – Australian Made
5 x 3M Scotchlok Gel Filled Connectors
1 x Brass EndCap
1 x 10m Pink Plumbing Tape
20m x 3 core Irrigation wire 0.5sqmm
COMBO PACKAGE INCLUDES:
1 x Orbit B-Hyve WiFi Controller 6 Station
1 x Rain Sensor
2 x 19mm Barb Outlet Solenoids 50LPM 24VAC – Australian Made
5 x 3M Scotchlok Gel Filled Connectors
1 x Brass EndCap
1 x 10m Pink Plumbing Tape
20m x 3 core wire 0.5sqmm
ORBIT B-HYVE LATEST MODEL WITH 4 PROGRAM(ABCD)
Orbit B-Hyve 6 Station WiFi Irrigation Controller – Ideal for Outdoor Use
The Orbit B-Hyve Wi-Fi sprinkler timer allows the user to water smarter and make watering decisions based on the needs of the home garden. Orbit B-Hyve controller combines easy programming and remote programming using the home Wi-Fi. Users can remotely access and programm their controller from their IOS (Apple) or Android mobile application at no charge.Programming can also be carried out at the controller allowing dual functionality.Orbit B-Hyve can be set to adjust watering based on local weather using your postcode making sure you minimise water waste due to rain and delivering the correct water volumes to your lawn and plants.
Features:
- 6 Stations/Zones
- Large LCD Display
- Weatherproof Case
- Can connect Rain sensor & Pump Start Relay
- Smart WeatherSenseTM Technology
- 4 programs
- 4 start times per program
- 1 – 240 minute run time per station
- Selective days to water or Odd/Even and interval selection upto 32 days
- Seasonal adjustment 10% – 200% per program
- Rain delay 1 – 32 days
- Will operate with or without Wi-Fi connectivity
- Indoor / Outdoor lockable cabinet
- Built in fault detection and surge protection
- Swing panel for easy access to wiring terminal
- Knock-outs for 13, 20 and 25mm conduit for station wires
- Intergrated catch-cup application allows up to 50% water savings
- Watering history reports
- Program stored in non-volatile memory and is not lost if timer loses power
- Up to 5 users allowed for remote access – ideal for maintenance and outside programming
SMART WATERING CAPABILITIES TO CONSERVE WATER
- Controller smart watering setting, acts as rain delay based on forecast with standard controller station programming
- Smart watering by station, allows user to set irrigation condition for each station plant type
- Wi-Fi functional Android, IOS mobile platform > no charge
- Programmable from mobile application or at the timer
- WeatherSenseTM technology that provides smart watering based on site conditions such as slope, soil type, sun/shade, historical ET and live weather feeds
- Smart watering restrictions based on odd/even or selective days
ELECTRICAL SPECIFICATIONS
- Transformer input : 240vac > 50Hz
- Transformer Output : 24vac @ 1.0A
- Station output : Upto 0.80A each
- Pump / Master Valve Outputs : 1 pump/master valve, 2 valves from 1 station
- Sensor inputs : 1 dry contact open type (prevents watering)
- IP ratings : IP33
- Battery: CR2032 3 volt DC, holds time and date
RAIN SENSOR:
- 5m wire length
- 5 level adjustable rain setting ( inch & mm)
- No battery Needed
- Shuts down watering once rain is detected
- Easy mounting
SOLENOID VALVE – MANIFOLD TYPE 24VAC – 50LPM
Inlet – 3/4″ BSP thread Male (AS 1722)
Outlet 1 – 3/4″ BSP thread-Manifold(Union Nut)- Female (AS 1722)
Outlet 2 – 19mm Barb Outlet
BONUS BRASS ENDCAP INCLUDED WITH ALL TYPE OF SOLENOID ARRANGEMENTS
PLEASE CONTACT US IF YOU NEED MASTER SOLENOID( 3/4″ Male Inlet x 3/4″ Male Outlet – 24VAC 50LPM). This Master solenoid can be included in beginning of valve assembly and is very useful. Also if you need to add more solenoids to this combo please let us know.
Technical Specification
Operating Pressure Range – 20Kpa to 1250Kpa
Power Consumption – 8VA
Frequency – 50Hz
Flow – 50LPM
Voltage – 24VAC
Valve Type – Normally Closed
Lead Length – 200mm
Temperature Range – 2°C – 60°C (Ambient), 2°C – 80°C (Media)
Material
Body – 30%Glass Filled Nylon
Coil Encapsulation – 30%Glass Filled Nylon
Diaphragm – Natural Nitrile Elastomer
Disk Diaphragm – Acetal
Filter – Acetal
Application Area – Liquid, Gas & Light Oil
Made in Australia
WaterMark Approved and Compliant with ATS 5200.030
| Weight | 3.5 kg |
|---|
