Free Shipping

Hunter Hydrawise 12 Station WiFi Irrigation Combo-Qty9 x 1"Solenoids&Rain Sensor

Hunter Hydrawise 12 Station WiFi Irrigation Combo-Qty9 x 1″Solenoids&Rain Sensor

Name: Hunter Hydrawise 12 Station WiFi Irrigation Combo-Qty9 x 1"Solenoids&Rain Sensor
SKU: Hunter12-9V
Price: 599.00 AUD
Availability: InStock

$599.00 Inc. GST

SKU: Hunter12-9V Categories: 8 Zone WiFi Controller Combo, Hunter Hydrawise, WIFI Controller Combos

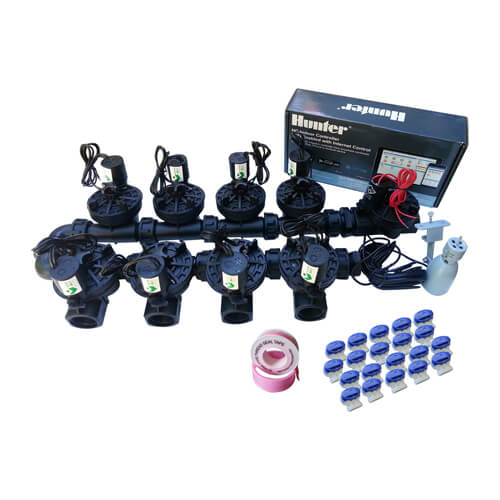

Hunter Hydrawise WiFi 12 Station Irrigation Controller + Rain sensor + Qty 9 x 1 inch Solenoids

Combo Includes:

Hunter Hydrawise 12 Station WiFi Irrigation Controller
Rain Sensor
Qty 9 x 1 inch Solenoid with Flow Control & Manual Override (Including Master Solenoid)
Qty 20 x Scotchlok 3M Gel Filled Connectors
Qty 1 x 10m Pink Plumbing tape
Qty 1 x 1 inch Endcap
Qty 1 x 1 inch M/F Adapter

ZONES

- - 12 Zones (HC-1201I-A)
  - Master valve (pump start) support using zone output. Master valve delay configurable before start and after zone finish
  - Multiple controllers supported per account to expand capacity
  - Designed for industry standard 24V AC solenoids
  - Two solenoids may be paralleled on a zone
  - Short circuit protection (800mA max)
  - Broken wiring detection with log alert (HC-12)

PROGRAMMED RUNS

Independent start times per zone
Odd or even week watering
Day of week scheduling
User-defined watering schedules to simplify watering setup and management

RAIN CLIMATE SENSING AND FORECAST

User-selected internet weather stations
External rain sensor input (open/close contact)
External soil moisture sensor input (open/close)

WATER FLOW MEASUREMENT

2 flow meter or generic (rain, moisture, level) sensor inputs per controller
SMS alerts for water use overflow and underflow – Enthusiast Plan required
Supports any reed pulse-based flow meters
Full reporting on water usage in litres or gallons per irrigation zone
Push notifications for Android and Apple devices
Aggregate water usage over 30 days

AUTOMATIC SCHEDULE MODIFICATIONS

Forecast temperature below a user set threshold
Evapotranspiration (ET)
Rainfall amount above user set weekly threshold
Forecast temperature and humidity above a user set threshold
Rainfall probability
Forecast wind speed
Rainfall amount above user set daily threshold

SENSOR PORT FUNCTIONALITY

Support for open/closed contact sensors including rain sensors and soil moisture
Configurable delay to start irrigation based on sensor – Enthusiast Plan required
Stop irrigation based on sensor input
Configurable delay to stop irrigation based on sensor
Start irrigation based on sensor input – Enthusiast Plan required
Per zone sensor support

TOUCHSCREEN FUNCTIONALITY

Full support for configuration without web browser or app
Start or stop zones
View current, sensor status, water usage (where applicable)

OTHER FUNCTIONS

Remote start, stop or suspend by web browser or iPhone/Android app
Local display – full graphic touchscreen with backlight
Automatic time, date and daylight saving adjustment
Local operation of watering zones, if required
Extensive reporting functionality
Remote software download and automatic updates

INTERNET CONNECTIVITY

Integrated Wi-Fi (802.11b/g compatible) connects to standard-based wireless access point
Security open or preshared key with WPA / WPA2

ELECTRICAL

Powered by 24V AC plugpack (supplied)
Zone running – 300mA typical @ 24V AC (single solenoid per zone)
Transformer input voltage 220V – 240VAC (International model) and 110V – 120 VAC (US model)
Standby – 75mA @ 24V AC

SUPPLIED ITEMS

Hydrawise Ready Controller – 12 Station
Rain Sensor Customised to use with Hydrawise Controller
Quick start installation instructions
24V AC 1 Amp plug pack
Wall mount screws

RAIN SENSOR:

5m wire length
5 level adjustable rain setting ( inch & mm)
No battery Needed
Shuts down watering once rain is detected
Easy mounting

1 inch Solenoid with Flow Control & Manual Override

Inlet – 1″ BSP Female thread (AS 1722)
Outlet – 1″ BSP Female thread (AS 1722)

Technical Specification

Operating Pressure Range – 20Kpa to 1250Kpa
Power Consumption – 8VA
Frequency – 50Hz
Flow – 100LPM
Voltage – 24VAC
Lead Length – 200mm
Valve Type – Normally Closed
Temperature Range – 2°C – 60°C (Ambient), 2°C – 80°C (Media)

Material

Body – 30%Glass Filled Nylon
Coil Encapsulation – 30%Glass Filled Nylon
Diaphragm – Natural Nitrile Elastomer
Disk Diaphragm – Acetal
Filter – Acetal
Application Area – Liquid, Gas & Light Oil
Made in Australia
WaterMark Approved and Compliant with ATS 5200.030

Weight	8 kg
